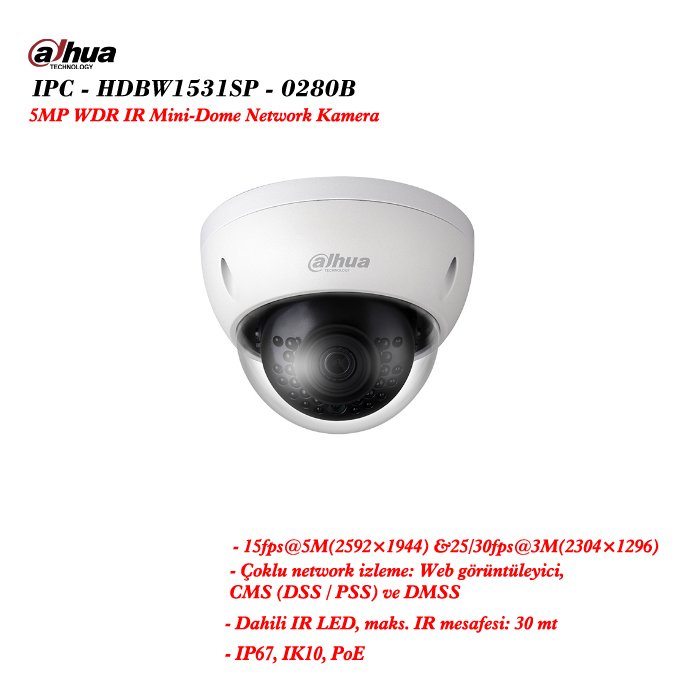

DAHUA IPC-HDBW1531E-S-0280B 5MP WDR IR Mini-Dome Network Kamera

Camera

Image Sensor

1/2.7” 5Megapixel progresive CMOS

Effective Pixels

2592(H)x1944(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.03Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

24

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (3.6mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:96°/78°, V:70°/58°

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63(207ft)

25(82ft)

13(43ft)

6(20ft)

3.6 mm

80(262ft)

32(105ft)

16(52ft)

8(26ft)

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

5M(2592×1944)/4M(2688x1520)/3M(2304×1296/2048x1536)/1080P(1920×1080)/720P(1280×720)/

D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Strwam: 5M(1 ~ 15fps)/3M(1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR
